| CPU | Supports 12/13/14th. CPU (LGA1700) |
| Chipset | Intel B760 Express Chipset |
| Memory | 2*288-pin DDR4 SDRAM slots up to 64GB |
| | Supports DDR4 2133/2400/2800/2933/3200 memory |

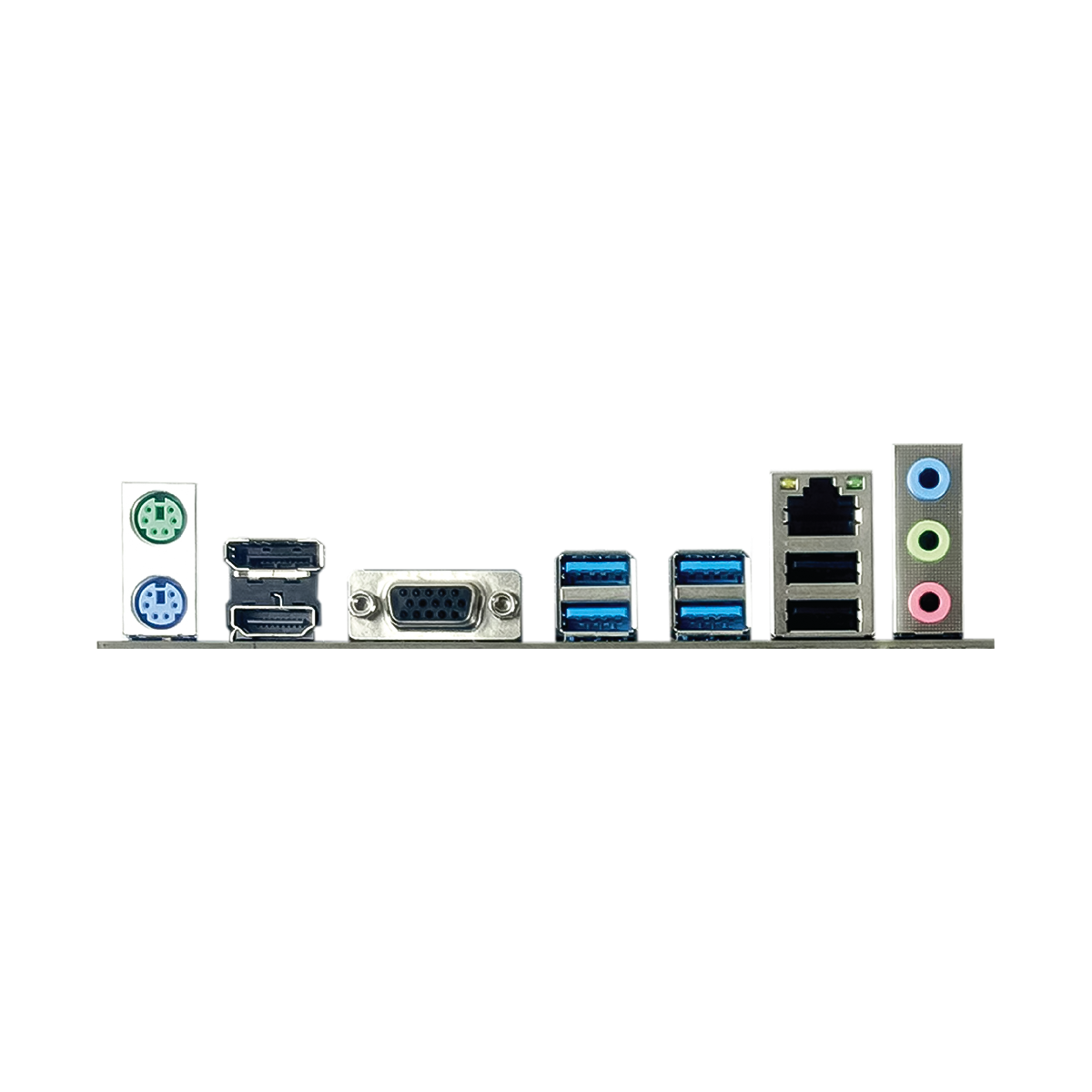

| I/O interface | 1xP/S2 keyboard port,1xPS/2 mouse port |
| | 1xVGA port, 1xDP port, 1xHDMI port |
| | 2xUSB2.0/4xUSB3.0 |
| | 1×3-in-1 Audio port(line in/line out/MIC in) |
| Onboard interface | 1×24-pin ATX power connector/1×8-pin ATX 12V power connector |
| | 2xUSB connector, can support 2*USB2.0 & 2*USB3.0 |
| | 1xF-AUDIO connector/1xF-PANEL connector |
| | 1xF-SPEAKER connector/2x FAN connector |
| | 3xserial Sata/6GB/S connector port |
| Integrated sound | Realtek ALC 6-channal HD Audio Codec onboard |
| | Provides front audio interface |
| | Provides front stereo mic interface |
| Integrated Lan | Realtek 10/100/1000 Mbps LAN |
| Expansion Slot | 1xPCI Express x16 slot, 1xPCI Express x 1slot |
| | 1xM2 NVMe, 1xM2 Sata/M2 NVMe (Auto Switch), 1xM2 WIFI |
| Dimension | Micro-ATX architecture(17*21 cm) |
